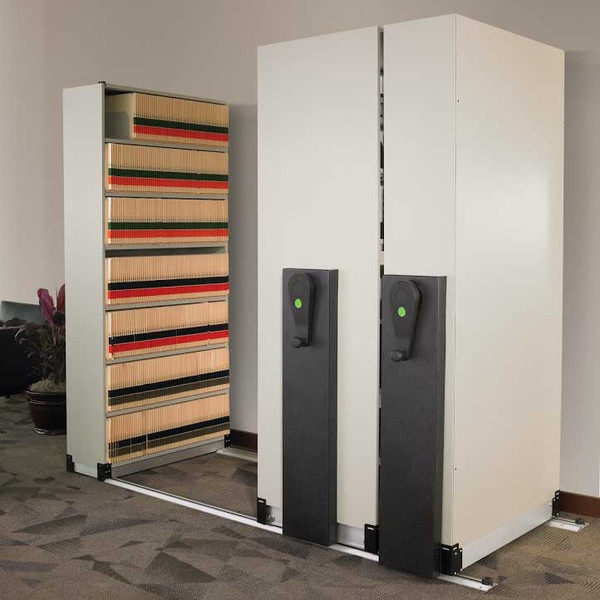

Mobile Lite High Density Medical Shelving System – Letter Size

Mobile Lite™ is a streamlined high-density mobile shelving system designed to increase medical record storage while reducing installation time and overall system cost. Built on the same sliding aisle concept as larger mobile systems, Mobile Lite eliminates fixed aisles by mounting shelving units onto a floor-mounted track and carriage assembly. Ideal for clinics, hospitals, and administrative record rooms, the system supports letter and legal end-tab filing and includes adjustable steel shelving with dividers for structured patient file organization.

What Makes Mobile Lite Different

Mobile Lite delivers the core benefits of high density mobile shelving in a simplified, easy-to-order configuration.

• Streamlined version of larger mobile aisle systems
• Installs in approximately half the time of heavy-duty systems
• More affordable system design
• Pre-configured typical layouts available
• No decking or ramping required
• Made in the USA

How the Mobile Lite System Works

• Mobile Lite uses a sliding carriage system mounted on floor track.
• One single-faced fixed unit included
• One single-faced movable unit included
• 2–4 double-faced movable units depending on configuration
• Only one aisle open at a time
• 36" standard aisle clearance
• Maximizes linear filing inches within compact footprint
• Rear shelving remains stationary. Front shelving moves laterally.

Medical Shelving Features

• Designed for end-tab medical filing
• Letter depth: 12" shelving
• 7-tier 4-post shelving typical configuration
• Shelves adjust in 1-1/2" increments
• 240 lb weight capacity per shelf
• Dividers included – 3 per shelf
• Back panels included for single-faced units
• Half-height end panel assembly included
• Key lock on single-faced movable unit
• Plunger locks on all double-faced movable units

Track & Carriage System Features

• Heavy-duty mobile bases
• Floor-mounted aluminum track
• Additional track included for aisle walkway
• No ramping required
• Anti-tip built into base system
• Carriage system supports substantial file loads

Available Filing Sizes

Letter Configuration

• 12" depth shelving
• System footprints range from 10' x 4' up to 15' x 9' typicals
• Linear Filing Inches range from 1,454" to 6,527" depending on layout

Typical System Specifications

• System Width: 118" to 199" depending on configuration
• Overall Range Length: 44", 56", 80", 104" depending on layout
• Overall Height: 80-1/4"
• Standard Aisle Width: 36"

Ideal Applications

• Small to mid-sized medical offices
• Clinics expanding record storage
• Administrative healthcare departments
• Billing offices
• Specialty practices
• Facilities needing faster installation

Technical Specifications

• Product Type: Compact high density mobile shelving system
• Shelving Type: 4-post adjustable steel shelving
• Shelf Capacity: 240 lbs per shelf
• Divider Count: 3 per shelf
• Filing Compatibility: Letter (12")
• Overall Height: 80-1/4"
• Standard Aisle: 36"
• Track Type: Floor-mounted
• Ramping Required: No
• Installation: Simplified system layout
• Country of Origin: USA

Mobile Lite is ideal for facilities that:

• Need high density filing but not a full heavy-duty system
• Want faster installation timelines
• Require predictable, pre-configured layouts
• Have limited room dimensions
• For custom layouts or space planning assistance, contact us for configuration support
