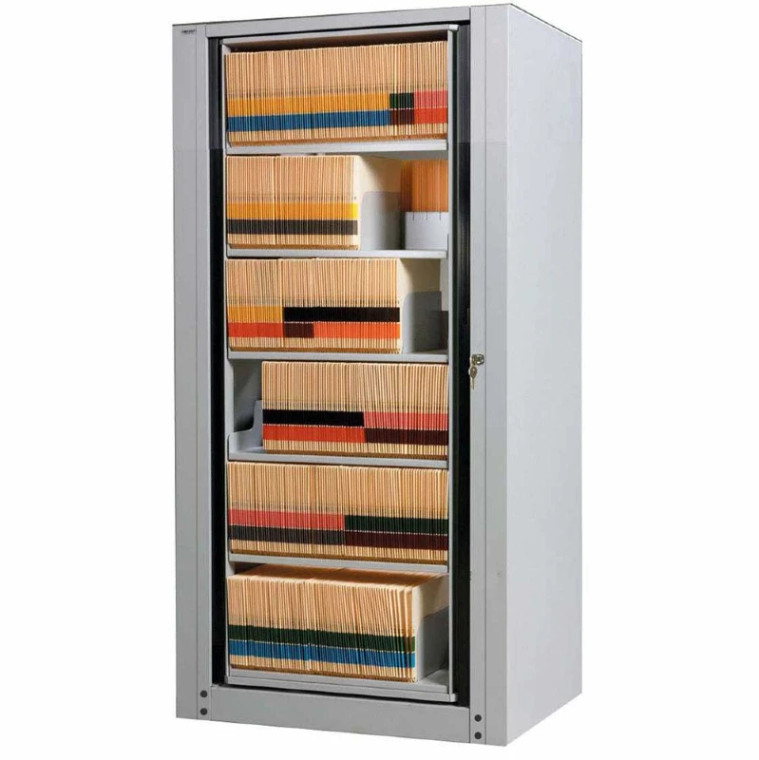

Mayline ARC Rotary File

The ARC™ Rotary File is a double-faced, high-density rotating filing system designed for medical offices, clinics, legal firms, and administrative environments. Its cantilever-style shelving maximizes unobstructed filing inches per level while providing smooth access to both sides. Available in Letter and Legal depth configurations and multiple tier heights, this Made in USA system delivers efficient space planning, expandable storage, and professional-grade durability for high-volume record management.

Cabinet Features

• Double-faced rotating carriage for access to both sides
• Cantilever-style shelving for maximum unobstructed filing inches
• Adjustable shelves in 1-1/2" increments
• 120 lb weight capacity per shelf
• Slotted shelves for organized filing
• Two (2) file dividers per 24" wide shelf
• Three (3) file dividers per 30" wide shelf
• Standard lock on all cabinets, keyed alike
• Available in Safco powder coat paint finishes
• Made in USA

Linear Filing Inches

6-Tier
Letter: 288 LFI
Legal: 360 LFI

7-Tier
Letter: 336 LFI
Legal: 420 LFI

8-Tier
Letter: 384 LFI
Legal: 480LFI

Starter & Adder Configuration

• S = Starter unit
• A = Adder unit: Adder units attach to either right or left side of Starter unit

Space Planning Requirements

• Allow 5-1/4" wall clearance for Letter depth rotation
• Allow 6-1/2" wall clearance for Legal depth rotation
• Minimum 36" alley clearance required

Technical Specifications

• Product Type: Double-faced rotating filing system
• Shelf Adjustment: 1-1/2" increments
• Shelf Capacity: 120 lbs per shelf
• Divider Configuration: 2 per 24" shelf / 3 per 30" shelf
• Lock: Standard keyed alike
• Finish: Safco powder coat paint
• Paint Match Program: Eligible
• Country of Origin: Made in USA
