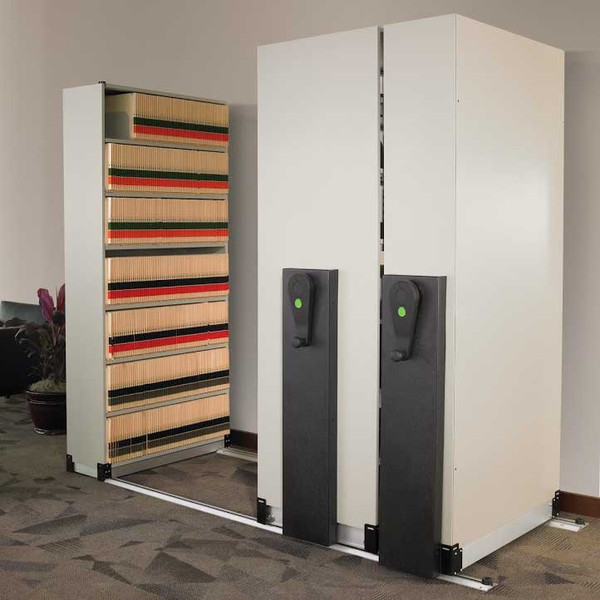

Mobile Lite High Density Medical Shelving System – Legal Size

Mobile Lite™ is a streamlined high-density mobile shelving system engineered specifically for legal-size end-tab medical filing. Designed to increase record storage capacity while reducing installation time and overall system cost, Mobile Lite eliminates fixed aisles by mounting shelving units onto a floor-mounted track and carriage assembly. Ideal for clinics, hospitals, and administrative record rooms storing legal-size patient files, this system includes adjustable steel shelving with dividers for structured, secure file organization.

What Makes Mobile Lite Different

Mobile Lite delivers the core benefits of high-density mobile shelving in a simplified, easy-to-order configuration.

• Streamlined version of larger mobile aisle systems
• Installs in approximately half the time of heavy-duty systems
• More affordable system design
• Pre-configured typical layouts available
• No decking or ramping required
• Made in the USA

How the Mobile Lite System Works

Mobile Lite uses a sliding carriage system mounted on floor track to eliminate wasted aisle space.

• One single-faced fixed unit included
• One single-faced movable unit included
• 2–4 double-faced movable units depending on configuration
• Only one aisle open at a time
• 36" standard aisle clearance
• Maximizes linear filing inches within compact footprint
• Rear shelving remains stationary. Front shelving moves laterally on track.

Legal Medical Shelving Features

• Designed for legal-size end-tab medical filing
• 15" depth shelving (Legal configuration)
• 7-tier 4-post shelving typical configuration
• Shelves adjust in 1-1/2" increments
• 240 lb weight capacity per shelf
• Dividers included – 3 per shelf
• Back panels included for single-faced units
• Half-height end panel assembly included
• Key lock on single-faced movable unit
• Plunger locks on all double-faced movable units

Track & Carriage System Features

• Heavy-duty mobile bases
• Floor-mounted aluminum track
• Additional track included for aisle walkway
• No ramping required
• Anti-tip built into base system
• Carriage system supports substantial file loads

Legal Configuration Specifications

• 15" shelving depth
• System footprints range from approximately 12' x 4' up to 17' x 7' typical configurations
• Linear Filing Inches range from approximately 1,454" to 4,854" depending on selected layout

Typical System Specifications

• System Width: 118" to 199" depending on configuration
• Overall Range Length: 44", 56", 80", or 104" depending on layout
• Overall Height: 80-1/4"
• Standard Aisle Width: 36"

Ideal Applications

• Medical offices storing legal-size patient files
• Clinics converting from drawer filing to mobile shelving
• Administrative healthcare departments
• Billing offices
• Specialty practices
• Facilities seeking faster installation timelines

Technical Specifications

• Product Type: Compact high-density mobile shelving system
• Shelving Type: 4-post adjustable steel shelving
• Shelf Capacity: 240 lbs per shelf
• Divider Count: 3 per shelf
• Filing Compatibility: Legal (15" depth)
• Overall Height: 80-1/4"
• Standard Aisle: 36"
• Track Type: Floor-mounted
• Ramping Required: No
• Installation: Simplified system layout
• Country of Origin: Made in USA

Why Choose Mobile Lite for Legal Filing?

Mobile Lite is ideal for facilities that:

• Require high-density storage for legal-size records
• Want increased filing capacity without expanding square footage
• Need faster installation than traditional heavy-duty mobile systems
• Prefer predictable, pre-configured layouts
• Have defined room dimensions and capacity goals

For custom layouts or space planning assistance, contact us for configuration support.
